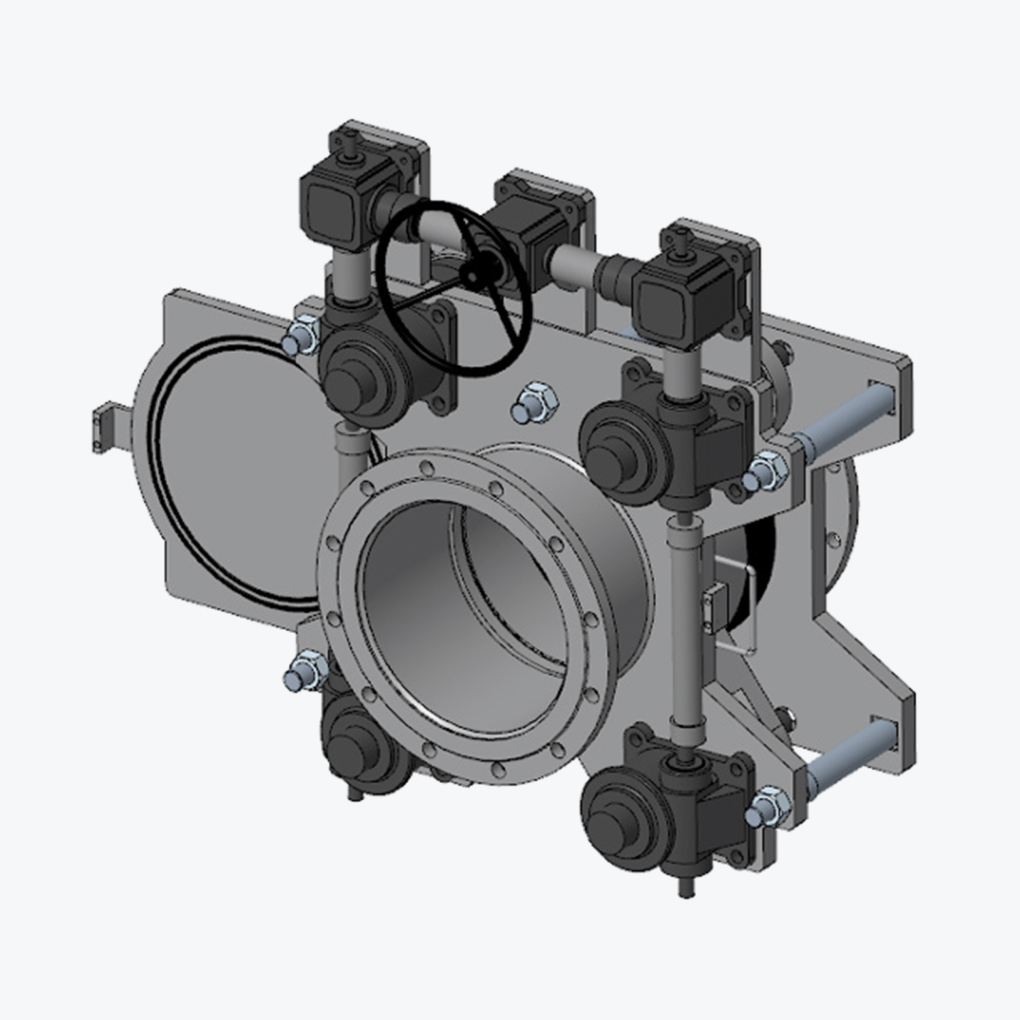

Screw Jack Type

SJ Series

Description

Pressurize the seat with a screw jack connected to the miter gear/bevel gear. It is applicable to larger sizes including ball joint type. The pressurization of the sheet is done by gears or motors, and the opening and closing of the blinds is done manually or automatically by motors, cylinders, ETC. the automatic type can be installed in areas that are inaccessible to personnel or toxic gas lines.

Standard Specification

Pressure Rating	ANSI/ASME CL150 ~ CL300 / RF KS/JIS 5K ~ 20K / RF EN PN6 ~ PN20 / RF
Allowable Temperature Range	-20 DEG.C ~ 250 DEG.C (Depending on the Sealing Material / Option for High-temp)
Size Range	ND 16”(400A) ~ ND 80”(2000A)
Materials	Body : Carbon Steel, Stainless Steel, etc. Blind : Stainless Steel, etc. Seat, Gasket : NBR, EPDM, Viton, Graphite, etc.
Operator	Clamping/Un-Clamping : Manual Worm Gear, Motor, Mitter Gear Open/Close : Manual, Motor
Applicable Fluid	GAS (COG, BFG, LDG, FOG), Dust, STEAM, Air, O2, H2, N2, Oil, Tail etc.
