Hart Communicator

Pneumatic Accessories

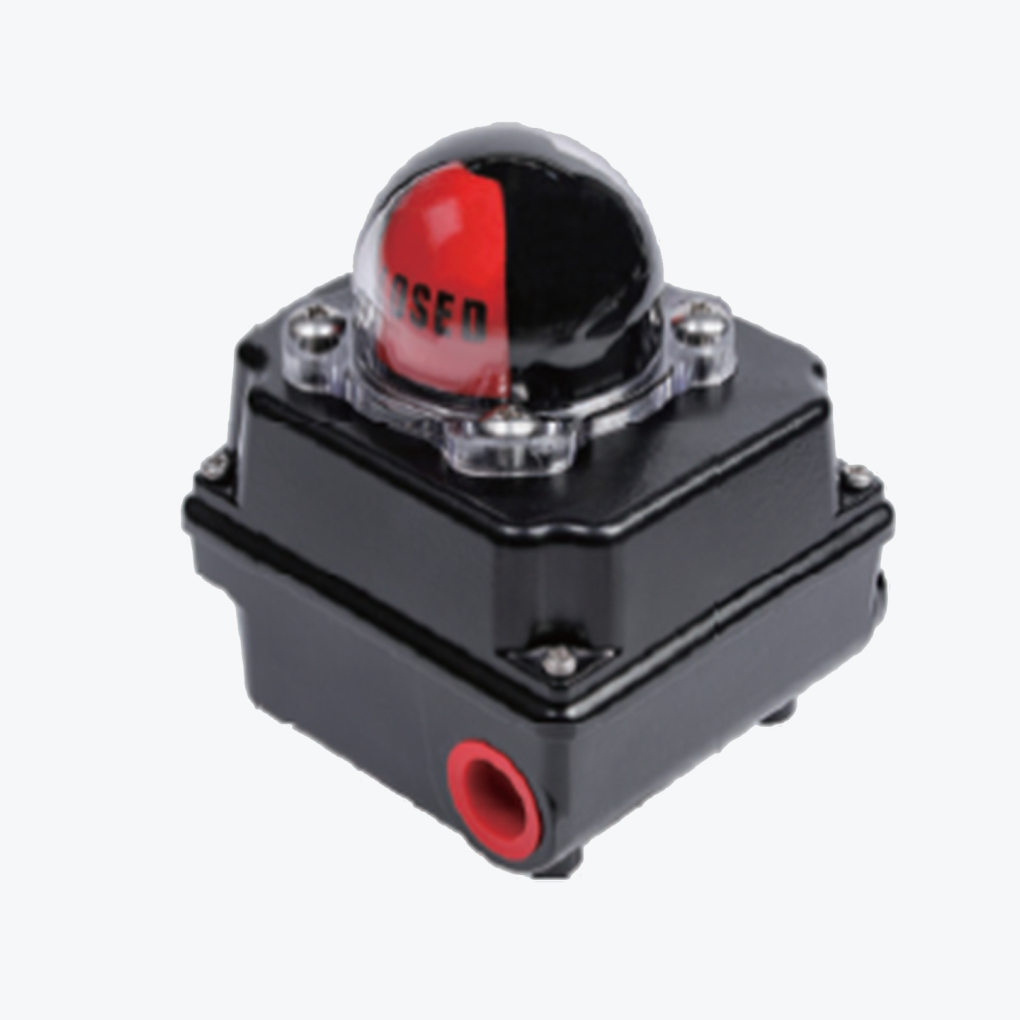

TS410 Series Limit Switch

Description

Limit switch box is a device which notifies the central control room or controller when the valve reaches the set position.

Standard Specification

Model	TS410M TS415M
Switch type	Mechanical switch2xSPDT Inductive proximitysensor
Switch type	KW3A-16Z3-A100(Dongnan) PSN17-5DNU(Autonics)
Switchrating(AC)	16A, 125/250V
Switchrating(DC)	30V, 10A 10~30V
Ingress protection	IP67
Conduit entry	2 x NPT1/2, G(PF)1/2, M20
Ambient Temp.	-20℃~70℃(Standard type)
Terminal	8 Points
Material	Aluminum die cast
Painting	Polyester powder coating
Weight	0.7kg
