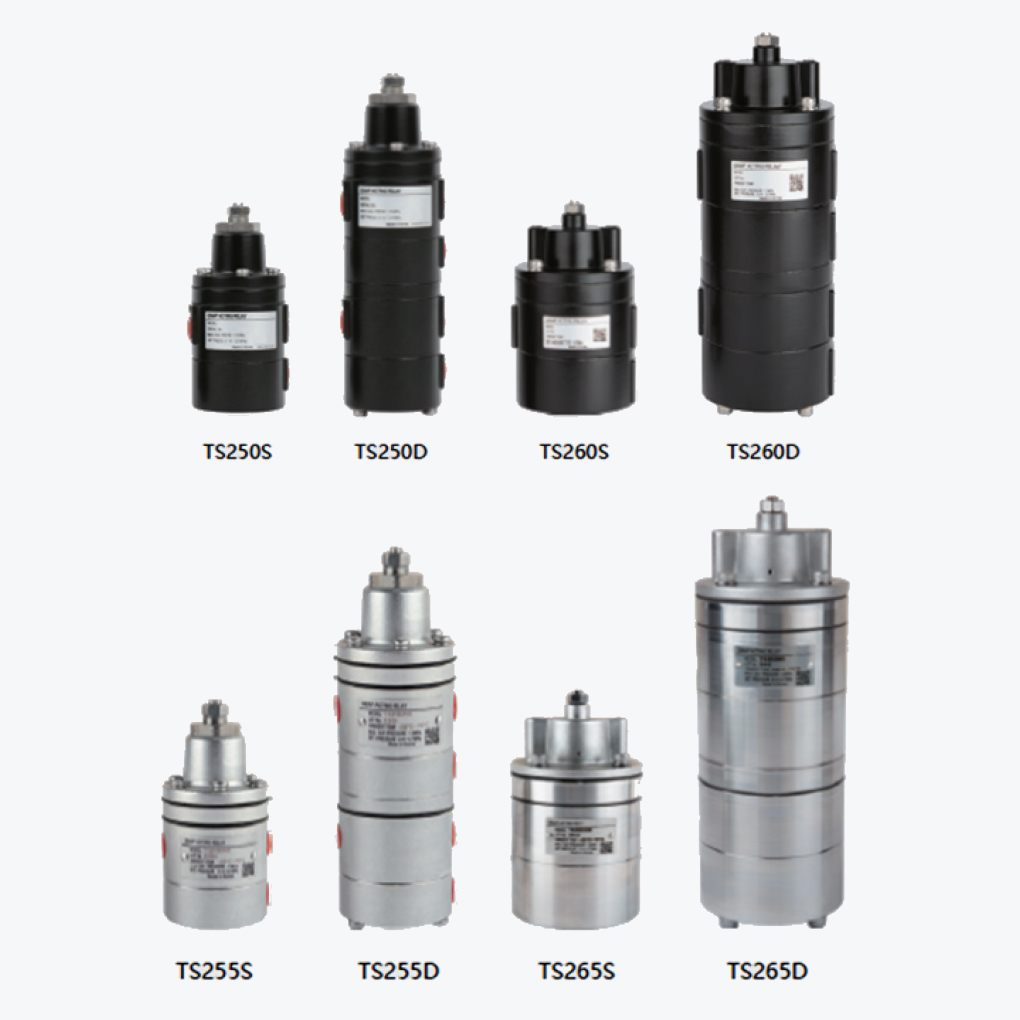

TS200 Series Snap Acting Relay

Description

Snap Acting Relay is a device that moves the control valve to the desired position in case of an emergency by switching or locking OUT port of pneumatic pipe when the signal pressure is lower than the set pressure

Standard Specification

Model	TS250 TS260 TS255 TS265
Signal Pressure	0.14 ~ 0.7MPa
Max Supply Pressure	1MPa
Max Signal Pressure	0.7MPa
Differential Pressure	Below 0.01MPa
Operating Temp.	-20℃ ~ 70℃ (Standard Type)
Flow Capacity(CV)	0.9 1.8 0.9 1.8
Signal Connection	NPT(PT) 1/4 NPT(PT) 3/8 NPT 1/4 NPT 3/8
In/Out Connection	NPT(PT) 1/4 NPT 1/4
Material	Aluminum Die Cast Stainless Steel 316
Weight(Single Type)	0.7kg 1.2kg 1.7kg 3.3kg
Weight(Double Type)	1.3kg 2.1kg 3.1kg 6.0kg
