Hart Communicator

Pneumatic Accessories

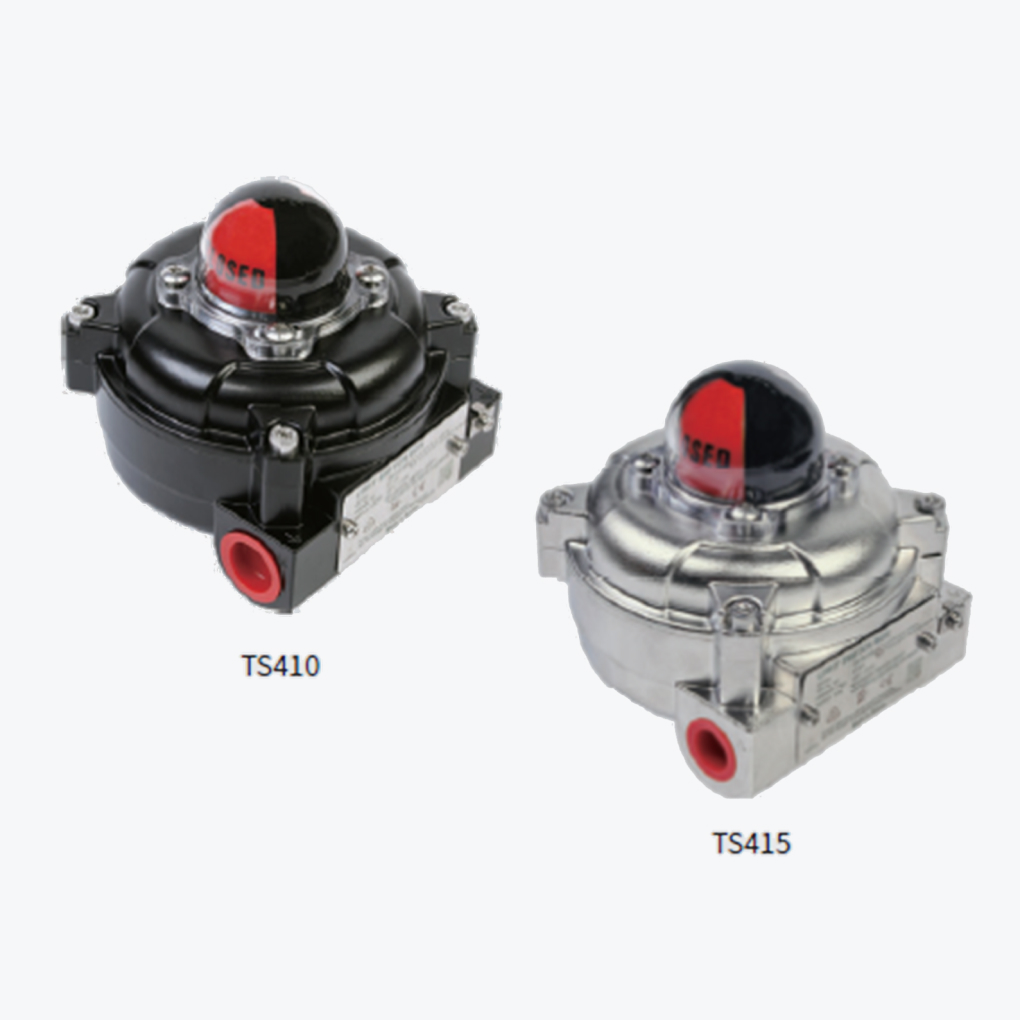

TS410 Series Limit Switch(Exd)

Description

Limit switch box is a device which notifies the central control room or controller when the valve reaches the set position.

Standard Specification

Model	TS410M TS415M TS410P TS415P
Switch type	Mechanical switch2xSPDT Inductive proximitysensor
Switch type	KW3A-16Z3-A100(Dongnan) PSN17-5DNU(Autonics)
Explosion proof	Ex db IIC T5/T6 Gb Ex tb IIIC T100℃/T85℃ Db
Ingress protection	IP67
Conduit entry	2 x NPT1/2, NPT3/4, M20, M25
Ambient Temp.	-40℃~80℃(T5)/-40℃~70℃(T6)
Terminal	8 Points
Painting	Polyester powdercoating Polyester powdercoating
Material	Aluminum die cast STS 316 Aluminum die cast STS 316
Weight	1.3kg 3.2kg 1.3kg 3.2kg
