KSF Pressure Safety Valve
A safety valve designed to open automatically at preset pressure levels, ensuring reliable protection for your system.


Series KSF
Bellows Type
Description

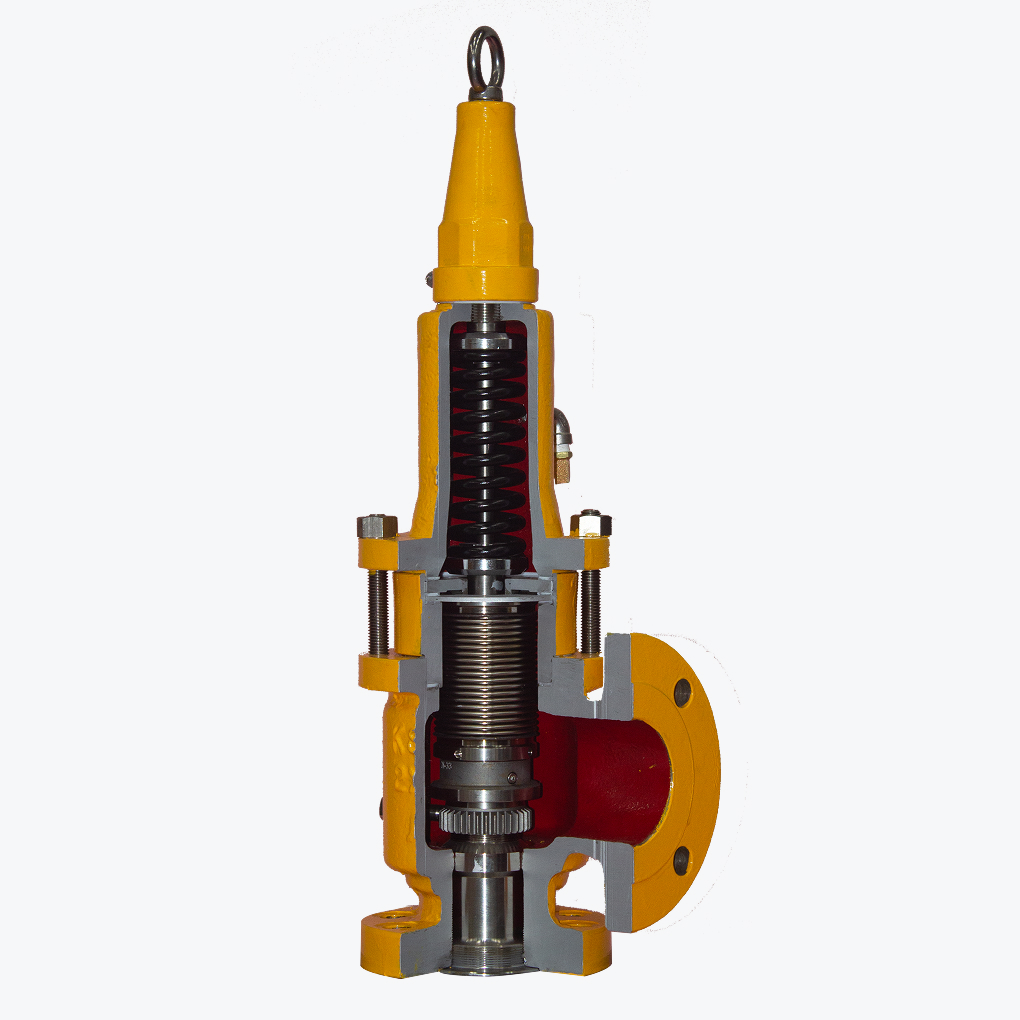

The GVK KSF series Spring Loaded Pressure Relief Valve is engineered for safety and high performance in oil and gas applications. Available in conventional and balanced bellows designs, these valves offer various material options and trim designs to suit different processes. They are suitable for vapor, gas, liquid, or steam applications and ensure reliable performance through features like a one-piece nozzle and a self-aligning disc.
Standard Specification
Design Ratings | ASME & API Class 150 to 2500 ASME Section III |
Size Range | 15 – 400mm (1 – 16 inches) |
Temperature Range | -196℃ – 538℃ (-320°F – 1000°F) |
Material |
Carbon Steel, Austenitic &
Martensitic Stainless Steels Duplex & Super-Duplex Alloys, 6Mo, Alloy 400, Alloys B & C, Alloy 625 &825 |
×
