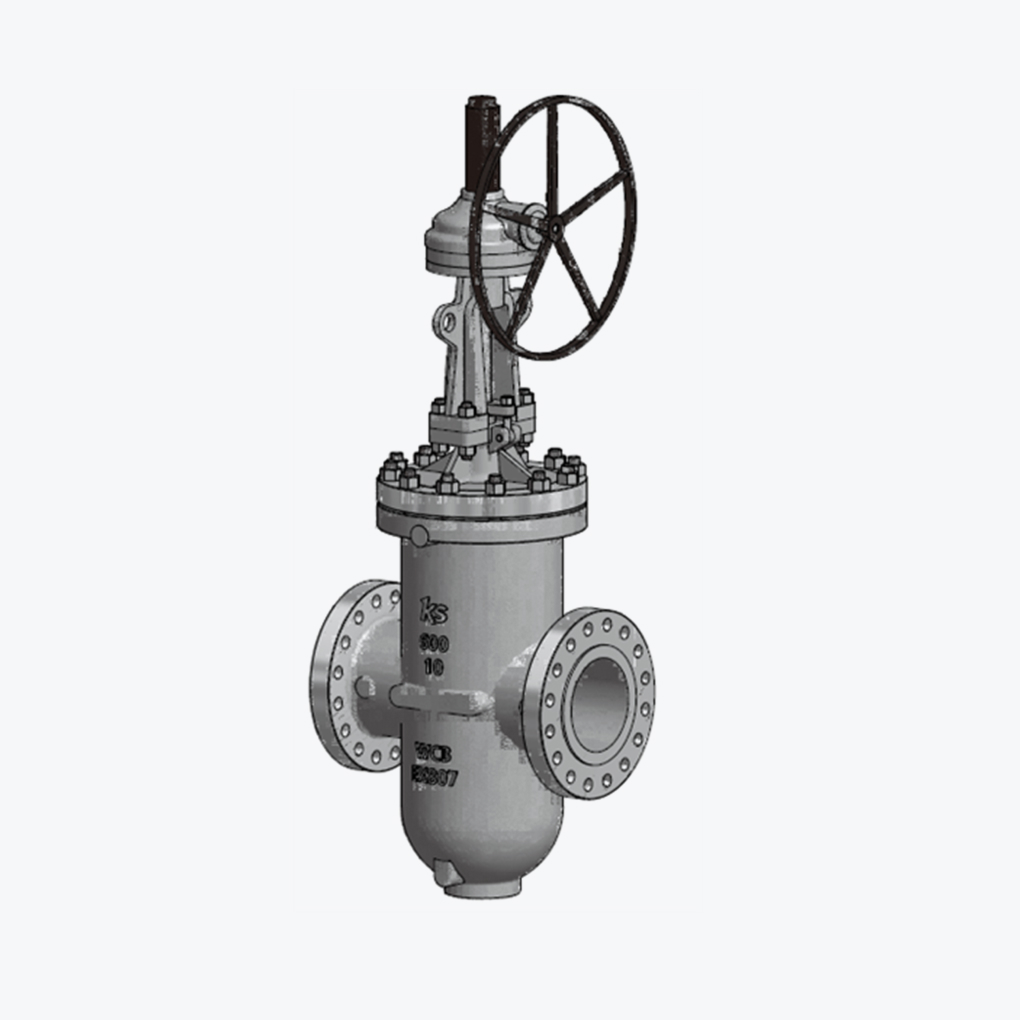

KSM-81 Series

Expanding Gate Valves

Description

풀 포트 디자인, OS & Y (외부 나사 및 요크). BB (볼트 보닛). 상승 스템 및 비상승 핸드휠. 게이트 디자인 확장. 시트와 스템에 2차 실란트 주입. DBB (더블 블록 및 블리드). 캐비티 릴리프 시스템. 플랜지 또는 버트 용접. 화재 안전 설계

Standard Specification

Pressure Rating	ASME CLASS 150 to CLASS 1500
Service Temperature	Up to +500℃
Available Size	NPS 2” to 36” (DN50 to DN900)
Design Code	API 6D
Face to Face	ASME B16.10
End Flange	ASME B16.5 & ASME B16.47
BW End	ASME B16.25
Test	API 6D
