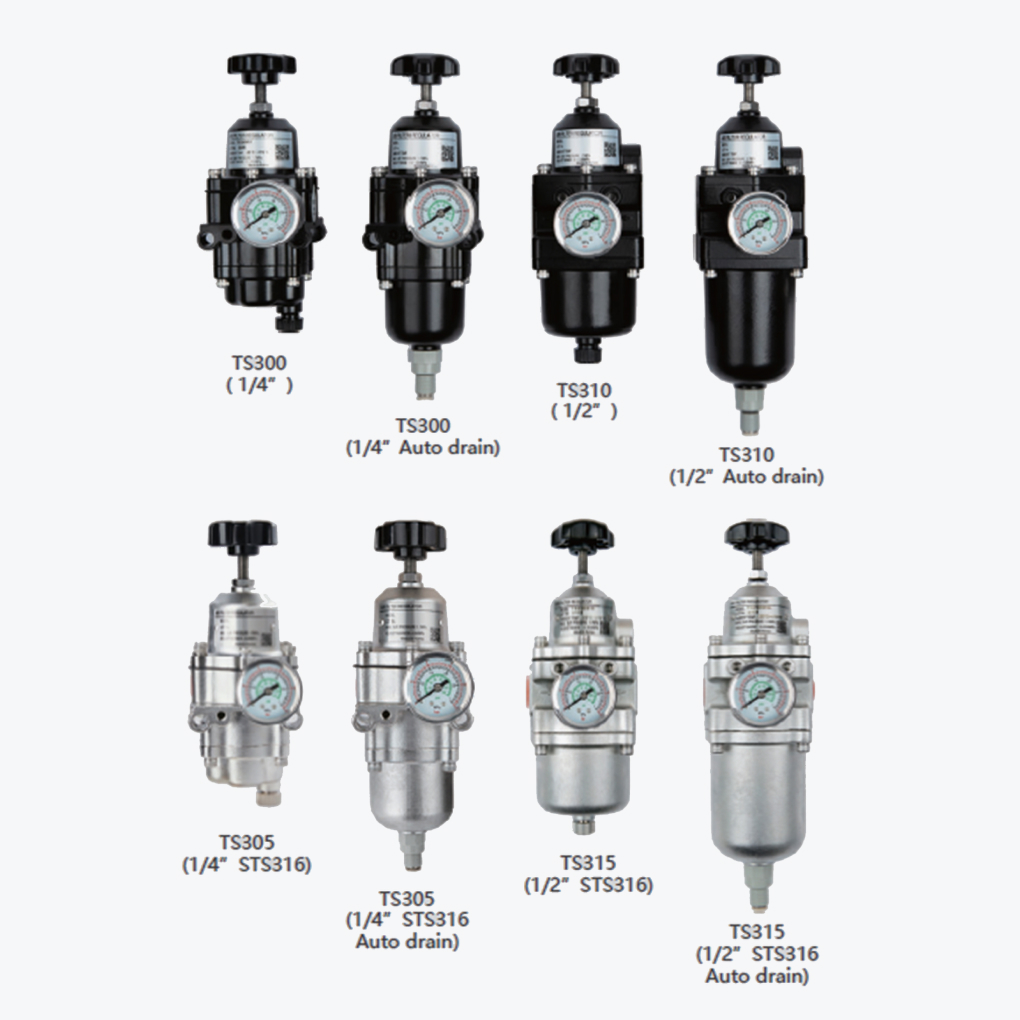

TS300 Series Air Filter & Regulator

Description

공기 필터 조절기 TS300 시리즈는 공압 측정 및 제어 장비에 일정한 공기 공급을 제공하는 데 사용됩니다.

Standard Specification

Model	TS300 TS310 TS305 TS315
Max supply pressure	1.7MPa
Max output pressure	0.84MPa
Operating Temp.	-20℃ ~ 70℃ (Standard type)
Filtering capacity	5 micron
Air connection	NPT(PT) 1/4 NPT(PT) 1/2 NPT 1/4 NPT 1/2
Gauge connection	NPT(PT) 1/4 NPT 1/4
Material	Aluminum die cast Stainless steel 316
Weight(Sdandard)	0.6kg 0.9kg 1.5kg 1.7kg
Weight(Auto drain)	0.6kg 1.0kg 1.6kg 1.9kg
