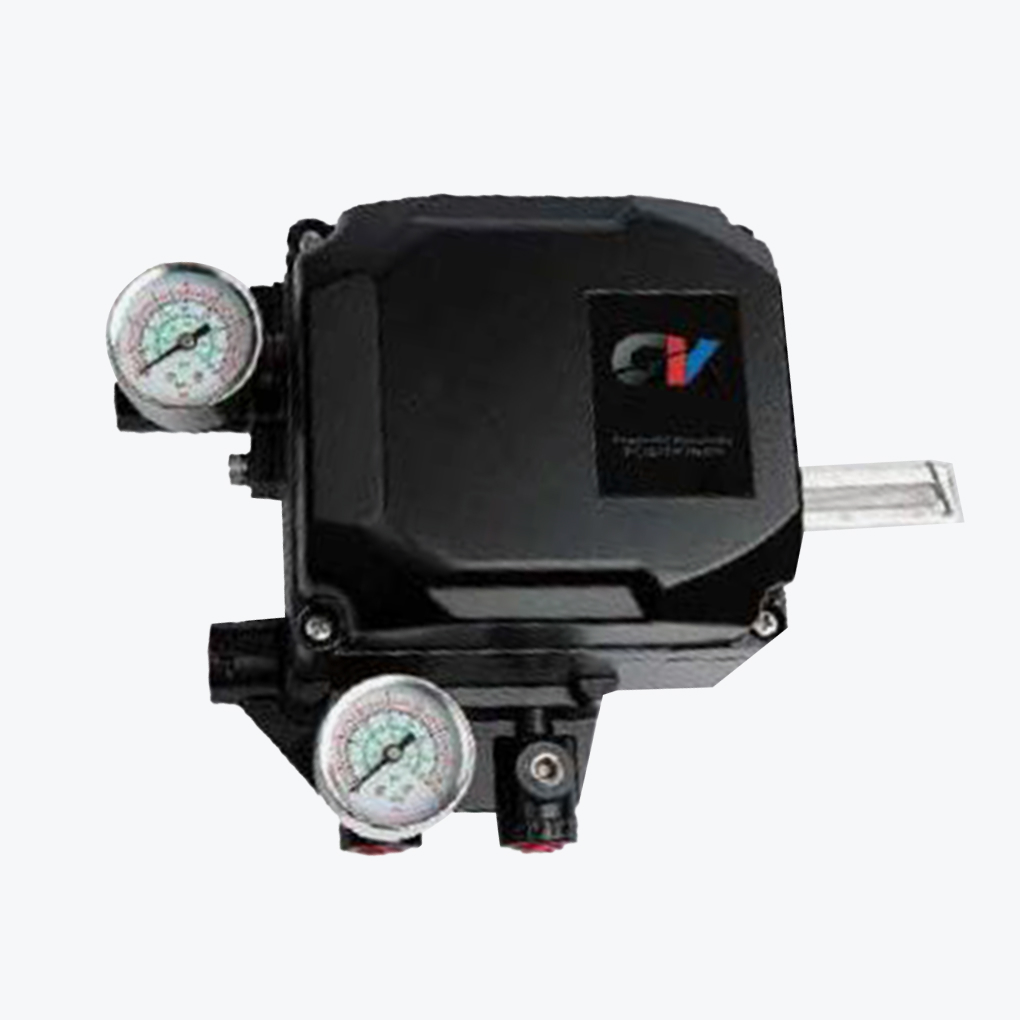

PP Positioner

Pneumatic-Pneumatic Positioner TS610 Series

Description

TS610 시리즈 공압-공기압 포지셔너는 컨트롤러의 입력 신호 압력 0.02 ~ 0.1MPa에 따라 밸브 스트로크를 제어합니다.

Standard Specification

Model	TS610(Single) TS610(Double)
Input signal	0.02~0.1MPa
Supply pressure	0.14~0.7MPa
Stroke	10~150mm (Linear), 0~90º(Rotary)
Air connection	PT 1/4, NPT 1/4, G 1/4
Gauge connection	NPT 1/8
Enclosure	IP66 (EN60529)
Ambient Temp.	-20℃~70℃ (Standard type)
Linearity	±1.0% F.S ±2.0% F.S
Sensitivity	±0.2% F.S ±0.5% F.S
Hysteresis	±1.0% F.S
Repeatability	±0.5% F.S
Air consumption	Below 2.5LPM (Sup=0.14MPa)
Flow capacity	Over 80LPM (Sup=0.14MPa)
Material	Aluminum die cast
Painting	Polyester powder coating
Weight	2.8kg
