Pneumatic Accessories

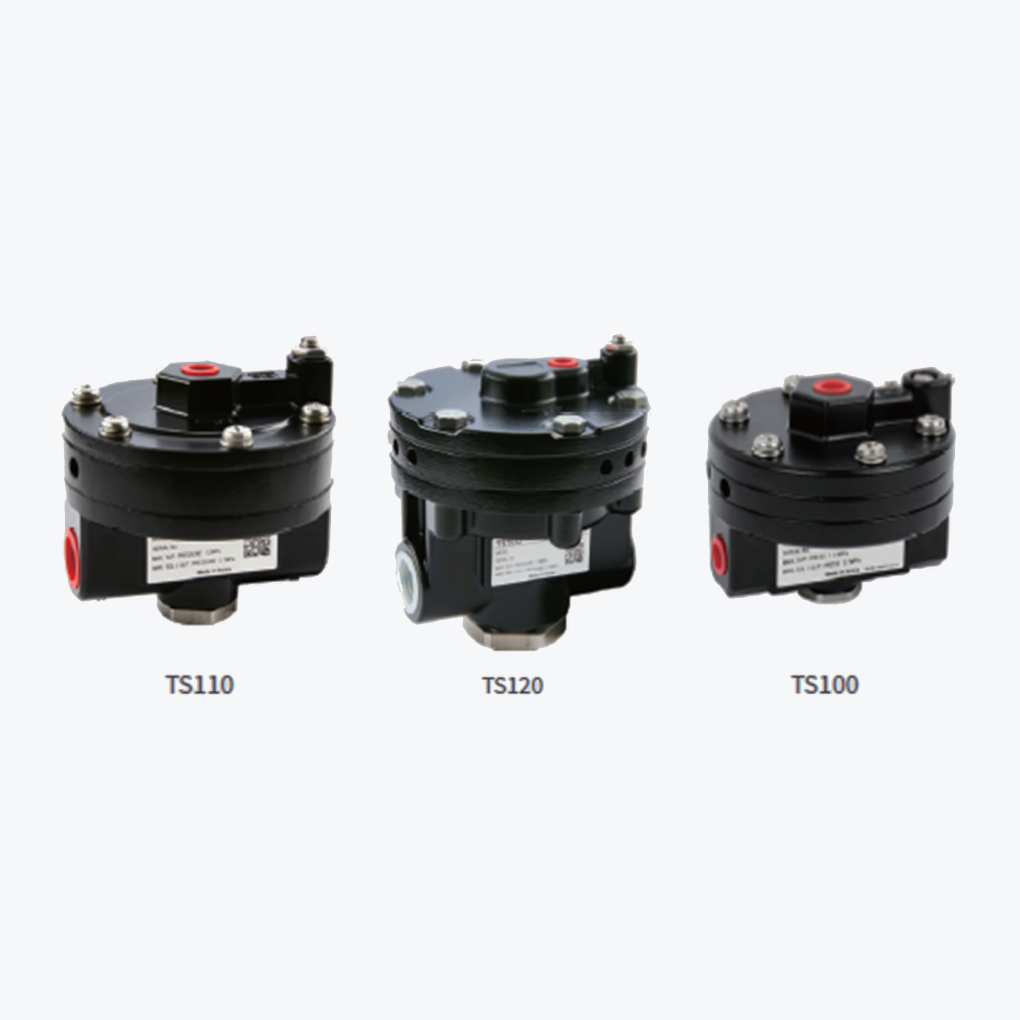

TS100 Series Volume Booster Relay

Description

볼륨 부스터는 공급 공기를 출력하기 위한 일대일 신호로, 포지셔너/액추에이터와 함께 사용할 경우 제어 밸브의 스트로크 속도를 높이기 위한 제어 장치입니다.

Standard Specification

ModelTS100TS110TS120	TS100 TS110 TS120
Max supply pressure	1MPa
Signal pressure	0.14 ~ 0.7MPa
Signal to output ratio	1 : 1
Linearity	1%
Flowcapacity(CV) (Exhaust)	1.3 2.1 5.2
Flowcapacity(CV) (Output)	1.2 2.7 4.9
Supply / Output port	NPT(PT) 1/4 NPT(PT) 1/2 NPT 3/4
Signal port	NPT 1/4, PT 1/4
Ambient temperature	-20℃ ~ 70℃ (Standard type)
Material	Aluminum die cast
Weight	0.55kg 0.75kg 1.9kg
