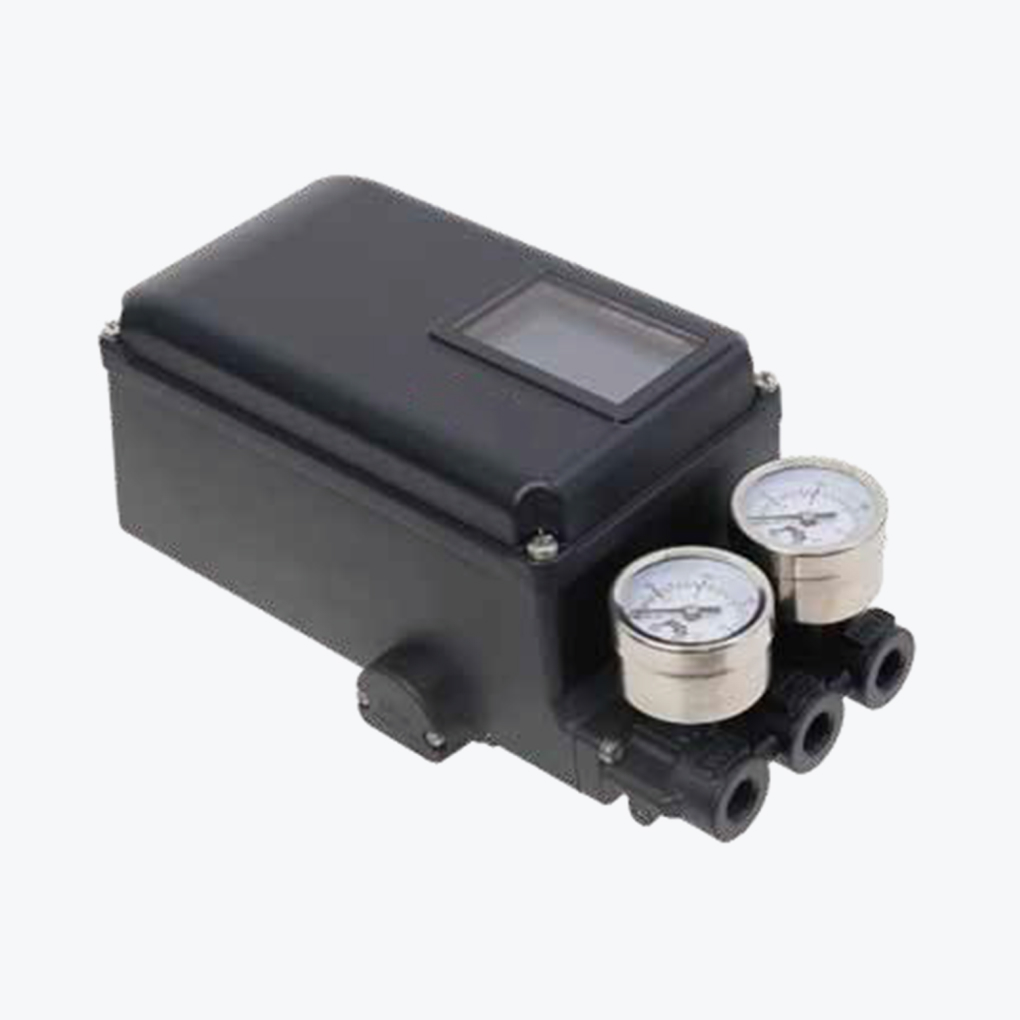

PA Positioner

ASD-5000 Series(Ex i)

Description

ASD-5000은 뛰어난 내구성과 정밀한 제어 성능을 갖춘 스마트 밸브 포지셔너입니다.
비접촉식 센서를 적용하여 높은 정확도로 제어 성능을 향상시켰으며, 고급 자가 진단 기능을 통해 밸브 상태를 안정적으로 모니터링할 수 있습니다. 다국어를 지원하는 넓은 디스플레이를 통해 다양한 정보와 현재 제어 상태를 그래프로 직관적으로 확인할 수 있어 운영 편의성을 극대화합니다.

Standard Specification

Hart Communication	HART (Ver. 7), FDI Certified by FieldComm Group DTM Certified by FDT Group
Non- Contract Position Sensor	Magnetic Position Sensor (MPS, Non-Contact) Resistant to Vibration Excellent Temperature Characteristics
Improved Durability	Vibration and Impact Tolerant Resistant to Dirty Air and Humidity
Diagnostics	Self-Diagnostics Advanced Diagnostics with 4× Pressure Sensor Valve Signature, Valve Step Response Partial Stroke Test (PST)
Options	Output Position Transmitter (4–20 mA) 2 × 24VDC Software Limit Switch or 2 × SPDT Mechanical Limit Switch Position Indication Beacon (Dome) Stainless Steel Body (316SS) Intrinsically Safe Ex ia IIC Gb & Ex ia IIIC Db HART Communication (Ver. 7) Fail-Freeze Function (Stay at Last Position)
