TS510 Series Transmitter(Exd)

Description

TS500 시리즈는 밸브 또는 댐퍼 위치의 변화에 따라 4~20mA DC 신호를 전송하는 2와이어 타입 송신기입니다.

Standard Specification

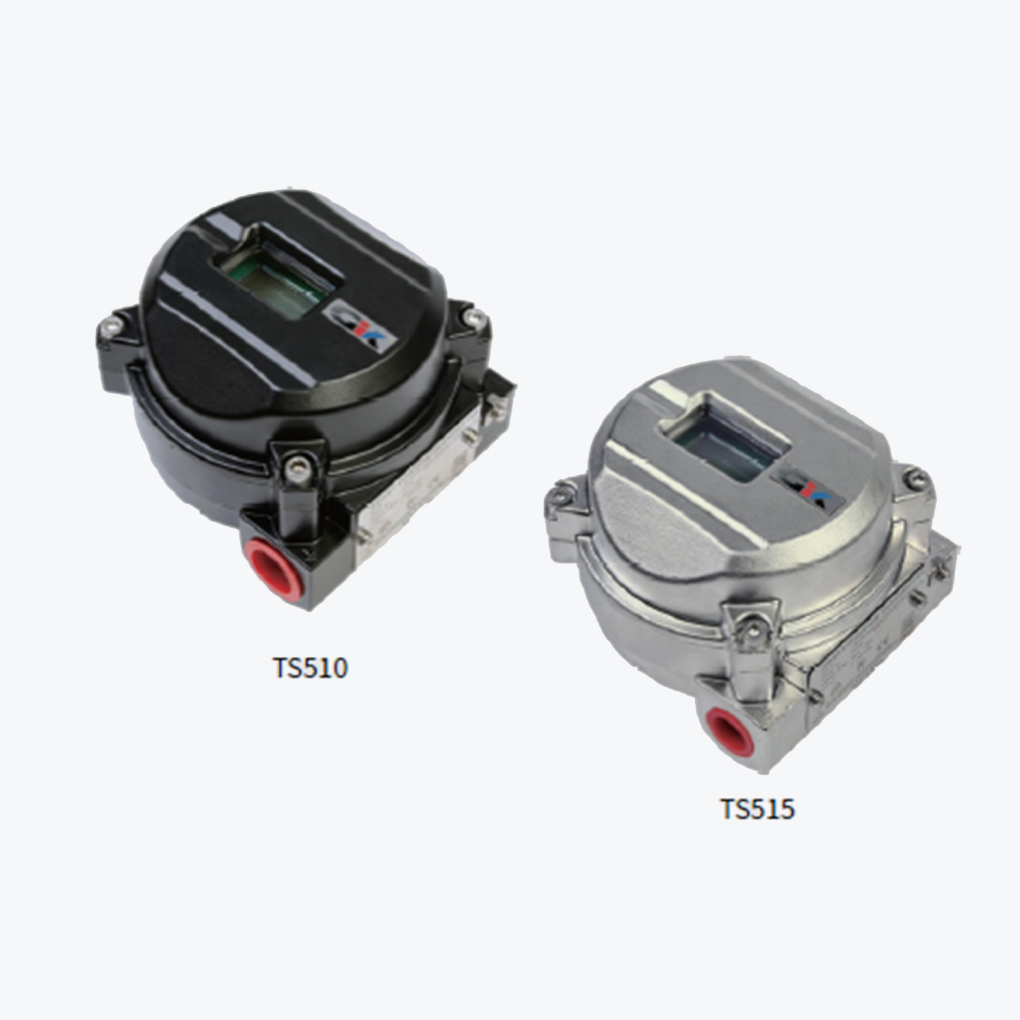

Model	TS510 TS515
Connection	2 Wire
Supply voltage	9~28V DC
Output signal	4~20mA DC
Explosion proof	Ex db IIC T5/T6 Gb Ex tb IIIC T85℃/T100℃ Db
Ingress protection	IP67
Conduit entry	2 x NPT1/2, NPT3/4, M20, M25 2 x NPT3/4
Ambient Temp.	-40℃~80℃(T5)/-40℃~70℃(T6)
Linearity	±1% F.S.
Hysteresis	±0.2% F.S.
Sensitivity	±0.2% F.S.
Material	Aluminum die cast Stainless steel 316
Painting	Polyester powder coating
Weight	1.4kg 3.3kg
